Description

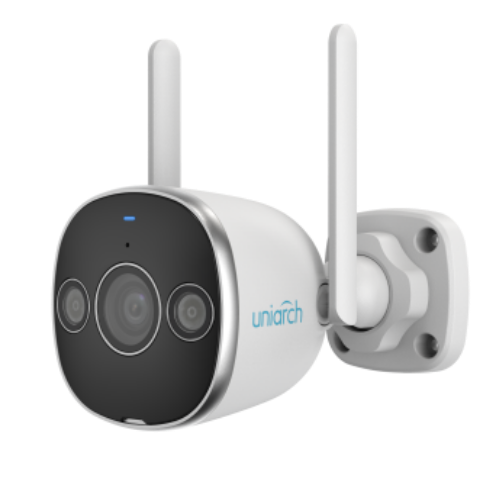

| Uho-B2D-M3F3D | Uho-B2D-M3F4D | |||||||
| Camera | ||||||||
| Max Resolution | 3 MP | |||||||
| Sensor | 1/3.0″ CMOS | |||||||
| Min. Illumination | Colour: 0.003 lux (F1.6 AGC ON) 0 lux with IR on |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |||||||
| S/N | >52 dB | |||||||
| WDR | DWDR | |||||||
| Lens | ||||||||
| Focal Length | 2.8 mm | 4.0 mm | ||||||
| Iris Type | Fixed | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 108.5° | 87.3° | ||||||
| Field of View (V) | 62.9° | 47.4° | ||||||
| Field of View (D) | 118.1° | 101.0° | ||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8mm | 4.0mm | ||||||
| DORI Distance (Detect) | 46.7m(153.1ft) | 66.7m(218.7ft) | ||||||
| DORI Distance (Observe) | 18.7m(61.2ft) | 26.7m(87.5ft) | ||||||
| DORI Distance (Recognize) | 9.3m(30.6ft) | 13.3m(43.7ft) | ||||||
| DORI Distance (Identify) | 4.7m(15.3ft) | 6.7m(21.9ft) | ||||||
| Illuminator | ||||||||
| Supplemental Light | Dual light | |||||||
| Illumination Distance (IR) | 20 m (65.6 ft) | |||||||
| Illumination Distance (Warm Light) | 10 m (32.8 ft) | |||||||
| Wavelength | 850 nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 3MP (2304*1296) ), Max 25fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
|||||||
| Video Bit Rate | 128 Kbps to 2048 Kbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Support (only NVR) | |||||||
| ROI | Up to 8 areas | |||||||
| Video Stream | Dual streams | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| Dewarping | N/A | |||||||
| HLC | N/A | |||||||
| BLC | N/A | |||||||
| Defog | Digital defog | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, Audio detection, Tampering alarm | |||||||
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR | |||||||
| Network | ||||||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna | |||||||
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP | |||||||
| User/Host | Up to 32 users, 2 user levels: administrator and common user | |||||||
| Compatible Integration | API, SDK | |||||||
| Client | APP, Uniarch client | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
| Wi-Fi | ||||||||
| Wireless Standards | IEEE802.11b/g/n | |||||||
| Frequency Range | 2.4 GHz to 2.4835 GHz | |||||||
| Channel Bandwidth | 20 MHz Support | |||||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT |
|||||||
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | |||||||
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps | |||||||
| Receive Sensitivity | 802.11b: -90 dBm@11 Mbps (Typical)802.11g: -75 dBm@54 Mbps (Typical)802.11n: -74 dBm@150 Mbps (Typical) | |||||||
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps | |||||||
| Interface | ||||||||
| Audio I/O | N/A | |||||||
| Alarm I/O | N/A | |||||||
| Built-in Mic | Support | |||||||
| Video Output | N/A | |||||||
| Built-in Speaker | Support | |||||||
| WIFI | Support | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
|||||||
| RF | FCC ID (FCC CFR 47 part15 C)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) | |||||||
| Safety | CE LVD (EN 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
| General | ||||||||
| Power | DC 12V±25% Power consumption: Max 5.7W |
|||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Material | Metal + Plastic | |||||||
| Dimensions | 148 × 78 × 78mm (5.8” × 3.1” × 3.1”) | |||||||
| Weight | 0.31 kg (0.68 lb) | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| LED Indicator | 1, red/blue | |||||||
