Description

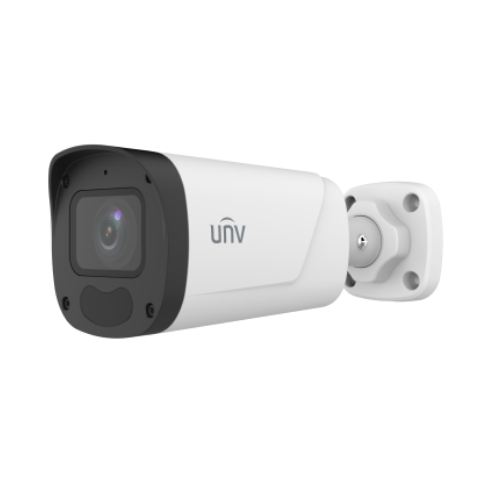

| UAC-B315-ADZLM | ||||||||
| Camera | ||||||||
| Max Resolution | 5 MP | |||||||
| Sensor Size | 1/2.7″ CMOS | |||||||
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
|||||||
| Lens | ||||||||
| Focus | 2.8 to 12 mm | |||||||
| Lens Mount | Φ14 | |||||||
| Angle of View (H) | 107.8° ~ 36.5° | |||||||
| Angle of View (V) | 58.5° ~ 20.5° | |||||||
| Angle of View (D) | 127.0° ~ 41.3° | |||||||
| Illuminator | ||||||||
| Illuminator Number | Three IR illuminators | |||||||
| Illumination Distance | 50m | |||||||
| Lifetime | ≥ 60000 hours | |||||||
| Video | ||||||||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
|||||||
| Frame Rate | CVI: 5MP@25fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps TVI: 5MP@20fps 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC |
|||||||
| Shutter Time | PAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s | |||||||
| Image | ||||||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, WDR | |||||||
| Day/Night | Three modes: Auto (default), Day, Night | |||||||
| Digital Noise Reduction | 2D/3D | |||||||
| White Balance | Two modes: Auto (default), Manual | |||||||
| WDR | 120 dB WDR | |||||||
| Smart IR | Support | |||||||
| Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
| Digital Defog | N/A | |||||||
| Audio | ||||||||
| Built-in Mic | Support | |||||||
| Camera Audio | CVI: 5MP@25fps,5MP@20fps, 4MP@25fps, 4MP@30fps | |||||||
| Interface | ||||||||
| Power Interface | 5.5 mm Power Interface | |||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
| Operating Environment | ||||||||
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) | |||||||
| Humidity | ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV for power, 4 KV for video output interfaces | |||||||
| General | ||||||||
| Power | DC 12 V±25% | |||||||
| Power Consumption | MAX 4.7W | |||||||
| Mount | Corner Mount, Pole Mount | |||||||
| Dimensions | 198mm*74mm*74mm (L*W*H) | |||||||
| Material | Metal + Plastic | |||||||
| Weight | 332g(0.73lb) | |||||||
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
